svet46kMINI SKID SSTEER LOADER
EVEN FILIP CAN DRIVE

VIDEO FILIP DRIVE

The laser Metal Starting Kit cost $1099
Shipping & Handling cost $399  for United States
and $250 for Canada
, ''ask for quote''

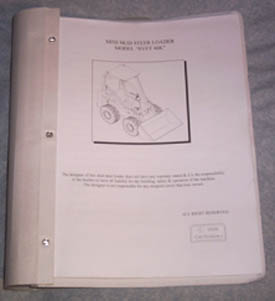

      The completed detailled plan alone & all drawings
      in paper format available at  $499
 + Shipping $30











  Look Inside













                    ***  It included the completed detail
                               plan & the technical Support.


SPECIFICATION

13 HP HONDA ENGINE OR 10 HP DIESEL

 EMPTY WEIGHT APPROXIMATE 1300 LBS

STANDARD BUCKET & BLADE 46" WIDE

 BUCKET MAX. CAPACITY 5.9 FT3

 MAXIMUM SAFE LIFTING CAPACITY 500 LBS

 MAX. DRIVE SPEED 4  KM/HR

 You make the heavy wall metal bushings yourself, no need pay  for machining, only need to followed
the instructions from the plan.
Make the heavy wall metal bushings yourself are much easier than you think.

                        *** 57 Plates Laser cut for greater accuracy.

                       *** 4 Weld-on hubs for the axles



      SPECIFICATIONS
   Click on the button above
   Detailed Plan (82 pages)
       Easy to understand








LASER METAL STARTING KIT
                    Weight 115 Lbs



     mini-skid-steer.com does not have any warranty stated & it is the responsibility of the builder to have all liability for
        the building, safety & operation of the machine.  We are not responsible for any misprint errors that may occur.
